Mud Pump Liners : Understanding the Basics and Benefits
Mud pump liners are vital to the drilling process, as they provide a protective barrier between the pump’s piston and the drilling fluids. By preventing direct contact, they minimize corrosion, wear, and tear, extending the lifespan of the pump. Moreover, these durable liners help maintain a consistent flow rate and pressure, optimizing drilling performance.
If you’ re in the oil and gas industry, you’ve likely heard about mud pump liners. But do you really understand the basics and benefits of these crucial components? In this comprehensive guide, we’ ll dive into the world of mud pump liners, exploring their function, types, and advantages.
Mud pump liners are vital to the drilling process, as they provide a protective barrier between the pump’s piston and the drilling fluids. By preventing direct contact, they minimize corrosion, wear, and tear, extending the lifespan of the pump. Moreover, these durable liners help maintain a consistent flow rate and pressure, optimizing drilling performance.There are various types of mud pump liners available, including metallic and non-metallic options. Each type offers unique advantages, such as enhanced durability, improved chemical resistance, and increased resistance to abrasion.
Understanding the basics and benefits of mud pump liners is essential for efficient drilling operations. So, whether you’re a seasoned industry professional or a newcomer, join us on this journey to gain valuable insights into mud pump liners and optimize your drilling processes.

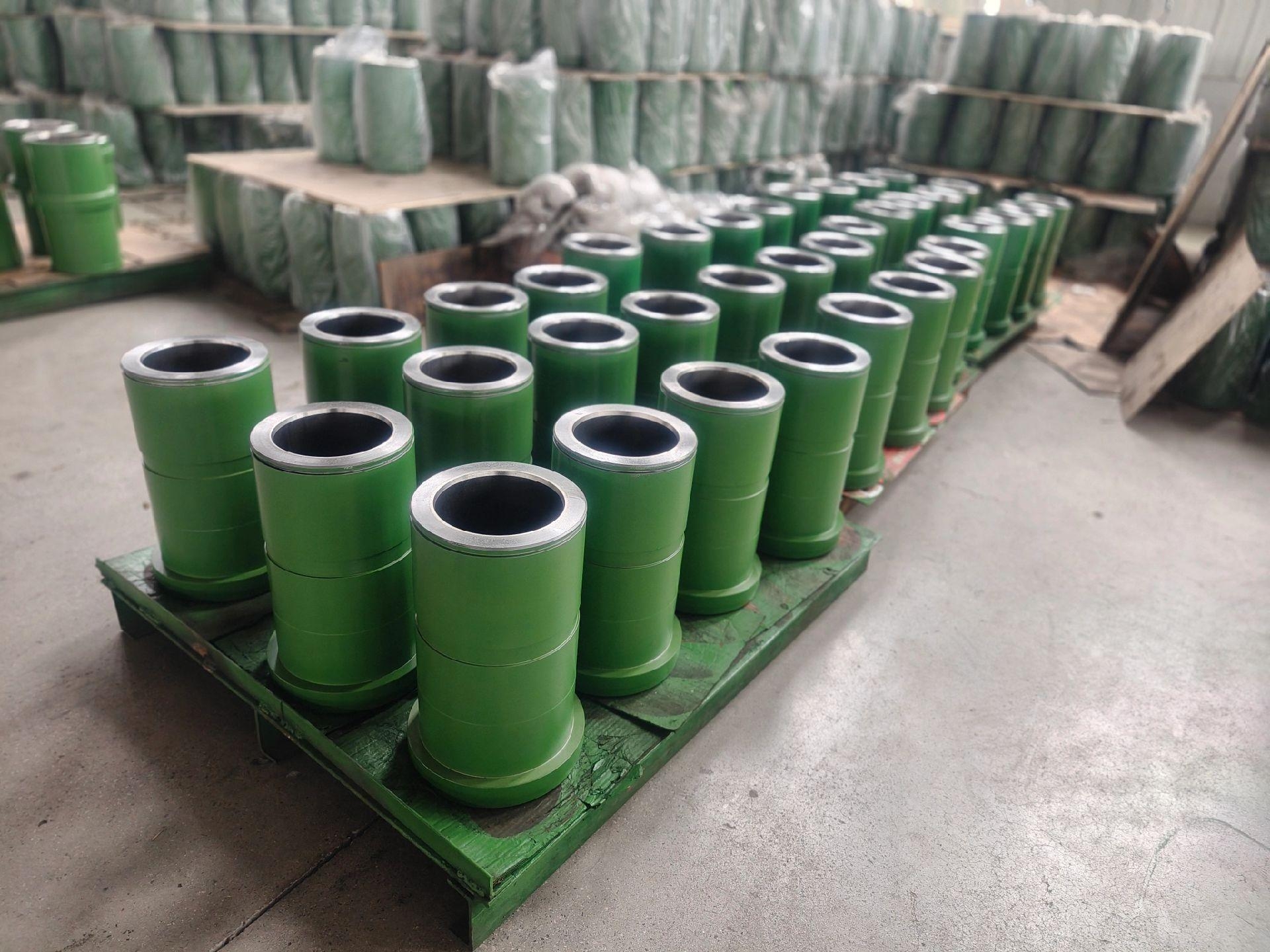

Basic components of mud pump liners
Mud pump liners are critical components in the fluid end of a mud pump, and they play a vital role in the drilling process. These liners are designed to withstand the abrasive and high-pressure conditions involved in pumping drilling mud or other fluids. The basic components of mud pump liners typically include:

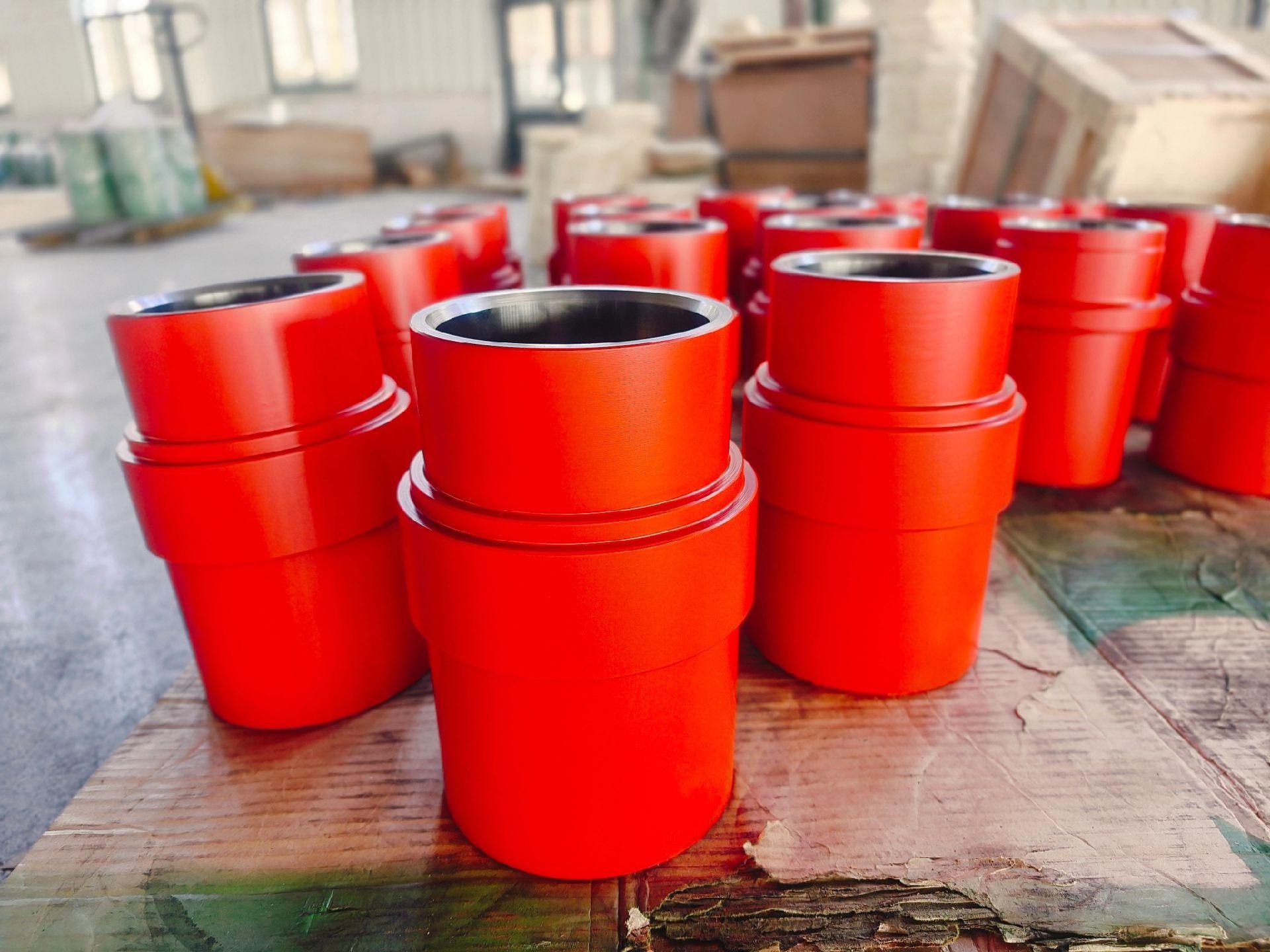

- Outer Barrel:
♦ The outer barrel is the main body of the mud pump liner. lt provides structural integrity and support for the other components.
- Inner Sleeve:
♦ The inner sleeve is the innermost surface of the liner and comes in direct contact with the drilling fluid.o Depending on the type of liner, it may be made of materials like hardened steel, chrome-plated steel, ceramic,or other wear-resistant materials.
- Flange:
♦ The flange is the thicker, usually threaded, portion at the top of the liner.
♦ lt provides a means of securing the liner to the fluid end of the mud pump.
- Valve Seat:
Some liners have a valve seat machined into the inner sleeve. The valve seat is where the pump valves (such as the discharge and suction valves) come into contact during the pumping process.o The valve seat should have a precise and smooth surface to create a proper seal with the pump valves.
- Liner Gasket:
♦ A liner gasket is often used to create a tight seal between the liner and the fluid end of the mud pump.
♦ lt helps prevent fluid leakage and maintain the pressure required for efficient drilling operations.
Common issues and troubleshooting with mud pump liners
Mud pump liners are critical components in drilling equipment, and various issues can arise during their use.Troubleshooting these common problems promptly is essential to prevent downtime and maintain efficient drilling operations. Here are some common issues with mud pump liners and steps for troubleshooting:
1.Excessive Liner Wear:
♦ lssue: Rapid wear of the liner’s inner surface, which can lead to reduced efficiency and increased maintenance costs.
♦ Troubleshooting:
“Check the composition of the drilling fluid for excessive abrasiveness.
Verify that the liner material is suitable for the drilling environment.
“Consider using liners with higher wear-resistant materials.
Monitor liner wear rates and replace worn liners promptly.
- Valve Seat Damage:
♦ lssue: Valve seats on the liner are damaged or eroded, causing leaks and reduced performance.o Troubleshooting:
“Inspect the condition of pump valves for damage or misalignment.
“Ensure that the valve seats are correctly machined and aligned.
“Use proper valve maintenance practices to prevent valve damage.
3.Fluid Leakage:
♦ lssue: Fluid leaks from the liner’s valve seat area, leading to inefficient pumping and potential safety hazards.
♦ Troubleshooting:
“Check the condition of the liner gasket and replace it if damaged or worn.
Ensure the liner is properly secured to the fluid end with the correct torque.
“Inspect valve seats for damage or deformation that could compromise the seal.
- Overheating:
♦ lssue: The liners or fluid end components are overheating due to excessive heat generated during drilling
operations.
Troubleshooting:
Ensure proper cooling of the liners, especially in high-temperature drilling environments.
“Check for obstructions in the cooling channels or fins, if applicable.
Adjust drilling parameters, such as flow rates and mud properties, to reduce heat generation.
- Corrosion and Erosion:
♦ lssue: Liners are corroded or eroded due to exposure to corrosive drilling fluids or abrasive materials.
♦ Troubleshooting:Verify that the liner material is corrosion-resistant and compatible with the drilling fluid.Consider using ceramic or other high-strength, corrosion-resistant liners for harsh environments.”Regularly inspect liners for signs of corrosion or erosion and replace them as needed.
- Frequent Liner Failures:
♦ lssue: Liners are failing prematurely, resulting in frequent replacements and increased downtime.o Troubleshooting:
“Review maintenance practices to ensure proper installation and care of liners.”Confirm that the liners are the correct size and type for the drilling conditions”Evaluate the quality of the liners and consider using reputable manufacturers.
7.Inconsistent Pump Performance:
♦ lssue: Inconsistent flow rates, pressure, or pump performance during drilling operations.
♦ Troubleshooting:”Inspect liners for damage, wear or misalignment that could affect performance.Check for valve issues or clogs in the fluid end components.Review drilling parameters and make adjustments as necessary.
- Reduced Efficiency:
♦ lssue: Decreased overall pump efficiency and increased energy consumption.o Troubleshooting:
“Verify that the liners have smooth, well-machined surfaces.
“Monitor liner wear rates and replace liners when they approach their wear limit”Ensure proper lubrication of valve seats, if recommended by the manufacturer.
