Valves: Critical Components for Efficient Mud Pump Operation
Mud pumps are essential in oil and gas drilling, circulating abrasive drilling fluid through the drill string and annulus. Valves ensure safe, efficient flow control of these harsh fluids, directly impacting pump performance and longevity.

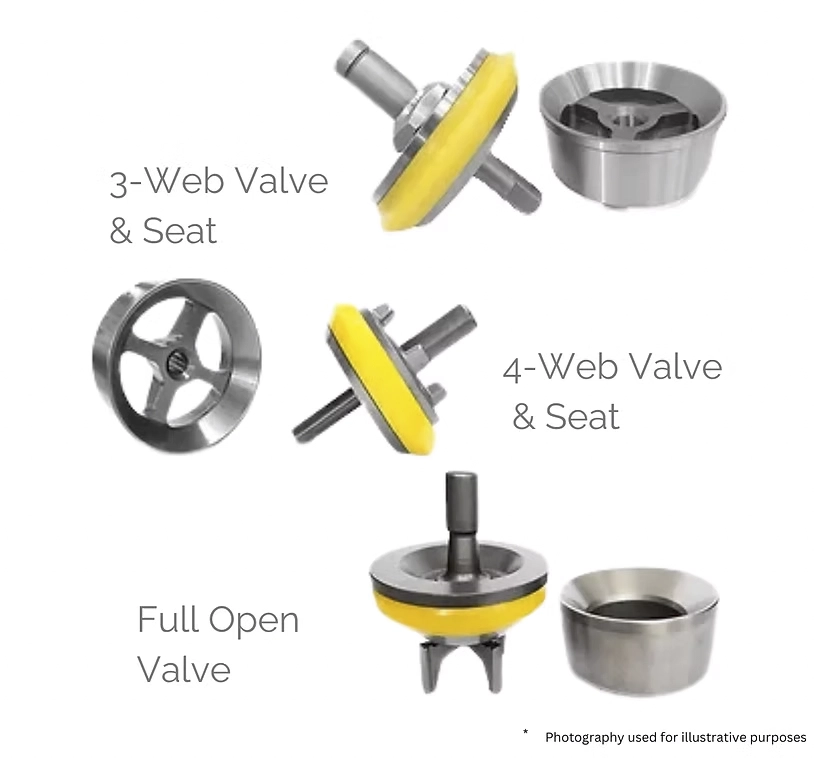

Key Valve Types for Mud Pumps
Valves are engineered for specific operational demands:
- Full Open Valves Function: Maximize fluid flow with minimal resistance. Use Case: High-flow applications requiring efficiency and reduced turbulence.
- 3-Web Valves
Function: Balance structural strength and flow capacity via three support webs. Use Case: Moderate-flow operations prioritizing durability. - 4-Web Valves
Function: Maximize structural integrity (four webs) for extreme pressure. Use Case: High-pressure environments where reliability is critical.
Why Full Open Valves Dominate Mud Pump Applications
Full open valves are the industry standard due to:
- Peak Flow Efficiency: Unrestricted design minimizes pressure drop.
- Reduced Wear: Smooth flow lowers erosion of valves/pump components.
- Versatility: Effective across pressure ranges and fluid types.
Selecting the Best Valve for Your Operation
Optimize performance by matching valve type to your conditions
| Valve Type | Best For | Key Benefit |
|---|---|---|
| High-Performance Full Open | High-volume transfer | Maximum efficiency & corrosion resistance |
| Robust 3-Web | Moderate flow + demanding conditions | Optimal strength-flow balance |
| Heavy-Duty 4-Web | Extreme pressure/harsh environments | Superior structural integrity |
Critical Selection Factors
Choose valves based on:- Drilling Fluid Properties: Abrasiveness, viscosity, and chemical composition.
- Operating Pressure: Valve strength requirements (e.g., 4-web for >7,500 psi).
- Material Quality: Tungsten carbide or hardened alloys for wear resistance.
